OCR
OCR, in general
OCR = Optical Character Recognition 光学文字识别
含文字的图像 –> （格式化）文字
Popular OCR Models
- conventional online OCR systems like zonal OCR: limited fonts, formats
- eg: proportionally spaced type (not monospaced)
- EasyOCR(lightweight but mostly for pdf conversion)
- Tesseract(for image conversion):
- Tesseract 4.x: Tesseract engine + LSTM-based(from OCRopus)
- good performance in high-resolution images.
- OCRopus(based on LSTM, less used nowadays)
- A collection of document analysis programs, not a turn-key OCR system.
- To apply it to your documents, you may need to do some image preprocessing, and possibly also train new models.
- Ocular: works best on documents printed using a hand press, state of the art historical OCR tool
- SwiftOCR: writtin in swift, claims to outperform Tesseract
Evaluation
CER: character-level
- $CER = (S+D+I)/N$
- where:
- S = Number of Substitutions
- D = Number of Deletions
- I = Number of Insertions
- N = Number of characters in reference text (aka ground truth)
-
evaluation:
- Good OCR accuracy: CER 1‐2% (i.e. 98–99% accurate)
- Average OCR accuracy: CER 2-10%
- Poor OCR accuracy: CER >10% (i.e. below 90% accurate)
WER: word-level
- $WER = (S_w+D_w+I_w)/N_w$
- A WER of 5-10% is considered to be good quality and is ready to use.
==Preprocessing==
Improving the quality of the output - tessdoc
OCR Preprocessing overall
Problems for prediction:
- headers with darker background colors are hard to recognize
- recognizing the whole table is harder than recognizing each cell
Solution:
- background removal
- reconstruct table structure, then separate each cell
- implemented using OpenCV

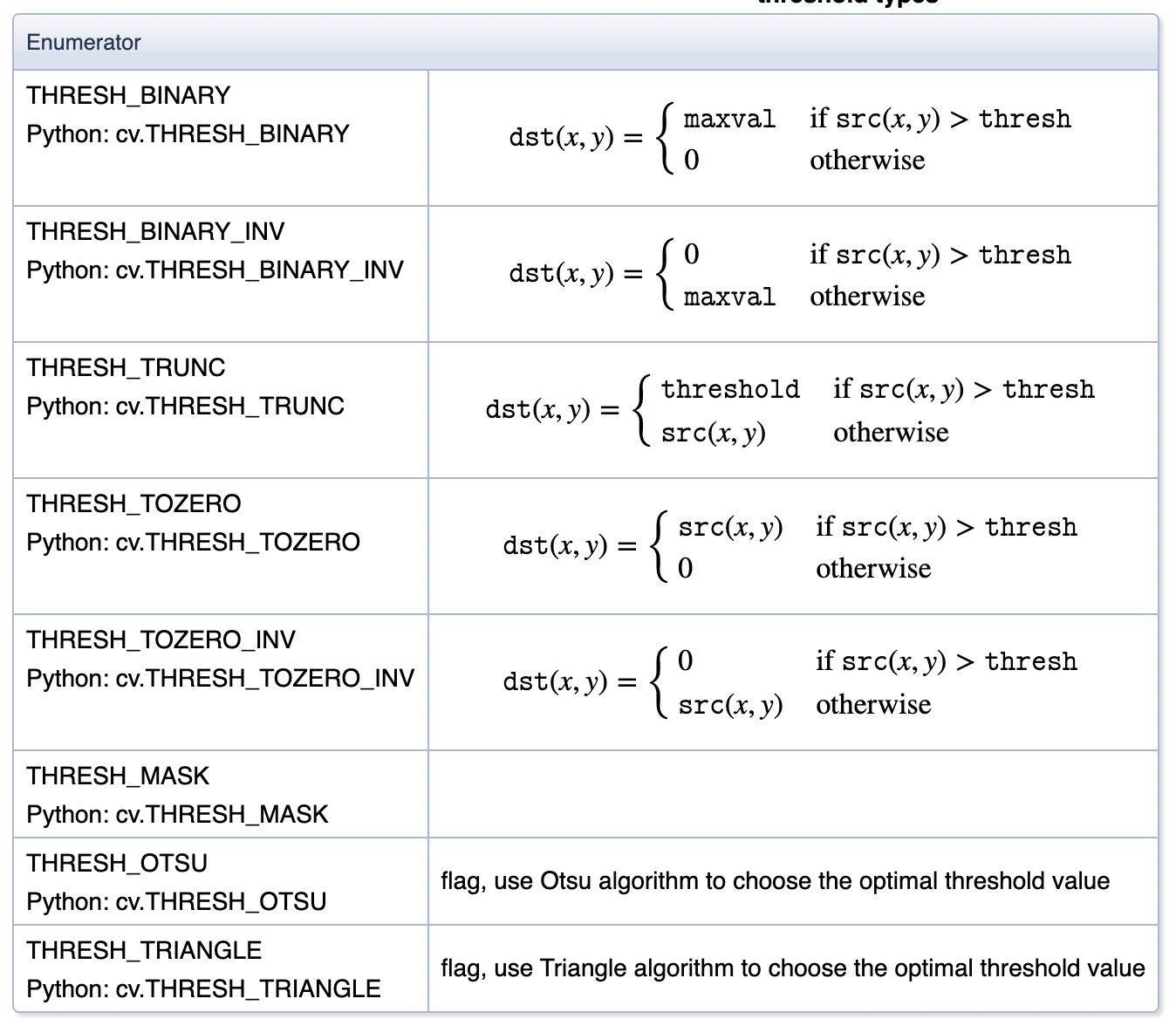

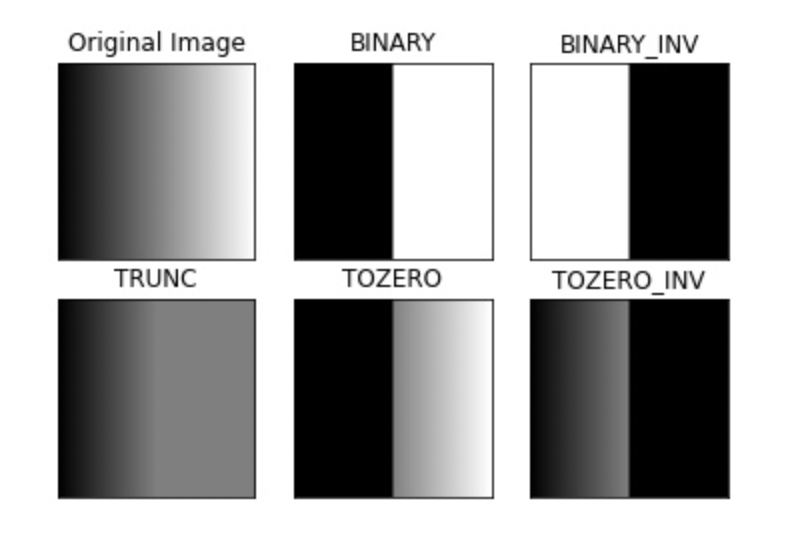

thresholding
import cv2 as cv
import numpy as np
from matplotlib import pyplot as plt
img = cv.imread('gradient.png',0)
ret,thresh1 = cv.threshold(img,127,255,cv.THRESH_BINARY)
ret,thresh2 = cv.threshold(img,127,255,cv.THRESH_BINARY_INV)
ret,thresh3 = cv.threshold(img,127,255,cv.THRESH_TRUNC)
ret,thresh4 = cv.threshold(img,127,255,cv.THRESH_TOZERO)
ret,thresh5 = cv.threshold(img,127,255,cv.THRESH_TOZERO_INV)
titles = ['Original Image','BINARY','BINARY_INV','TRUNC','TOZERO','TOZERO_INV']
images = [img, thresh1, thresh2, thresh3, thresh4, thresh5]
for i in range(6):
plt.subplot(2,3,i+1),plt.imshow(images[i],'gray',vmin=0,vmax=255)
plt.title(titles[i])
plt.xticks([]),plt.yticks([])
plt.show()

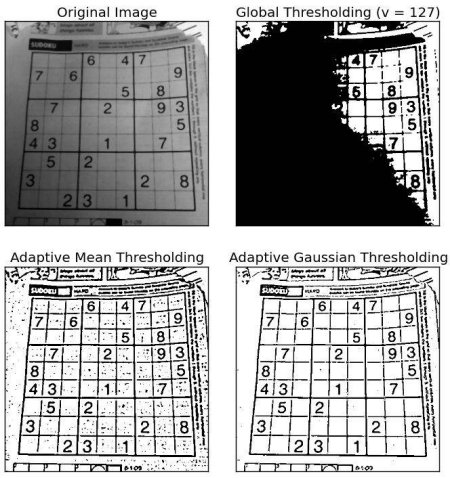

Adaptive Thresholding
The adaptiveMethod decides how the threshold value is calculated:
- cv.ADAPTIVE_THRESH_MEAN_C: The threshold value is the mean of the neighbourhood area minus the constant C.
- cv.ADAPTIVE_THRESH_GAUSSIAN_C: The threshold value is a gaussian-weighted sum of the neighbourhood values minus the constant C.
ret,th1 = cv.threshold(img,127,255,cv.THRESH_BINARY)
th2 = cv.adaptiveThreshold(img,255,cv.ADAPTIVE_THRESH_MEAN_C,\
cv.THRESH_BINARY,11,2)
th3 = cv.adaptiveThreshold(img,255,cv.ADAPTIVE_THRESH_GAUSSIAN_C,\
cv.THRESH_BINARY,11,2)
structure recognizing
OpenCV: Morphological Transformations
border enhancing(prep)
思路：生成一个辅助border recogniton的图像–整行/列的空白填黑，深色的数字变浅。
识别空白行/列：维护dict计数器数每个值的像素数量
-
遍历所有列，记下空白的列
- 遍历完行之后把空白列和其前一列涂黑
- （不干扰到行的识别）
-
遍历所有行，空白行涂黑
2.1 对于不完整的行（比如同一格里面分出的子结构，短的行），如果一行中有一段固定长度的都是黑的，把整行和前一行都涂黑
2.2 把空白行涂黑
2.3 深色数字变浅
structure/border recoginiton
方法：
- erode（腐蚀） + dilate（扩散）：提取出行和列
- 对于行和列，定义相应的kernel
- erode去除白噪音，dilate放大kernel对应的特点
- **bitwiseand: **行、列交叉的位置就是每个表格单元的顶点
- 对交叉点排序，遍历x和y交叉点筛选顶点：
- 当前位置 - 前一个位置 > thresh_stripe则为顶点，记录顶点位置
Tesseract OCR
Tesseract OCR in Python with Pytesseract & OpenCV
What is Tesseract and how it works? - by BytePace - Medium
- 文字识别 + 保留格式
- 对preprocessing要求高
- low-frequency changes in brightness must be high-pass filtered
- remove dark borders

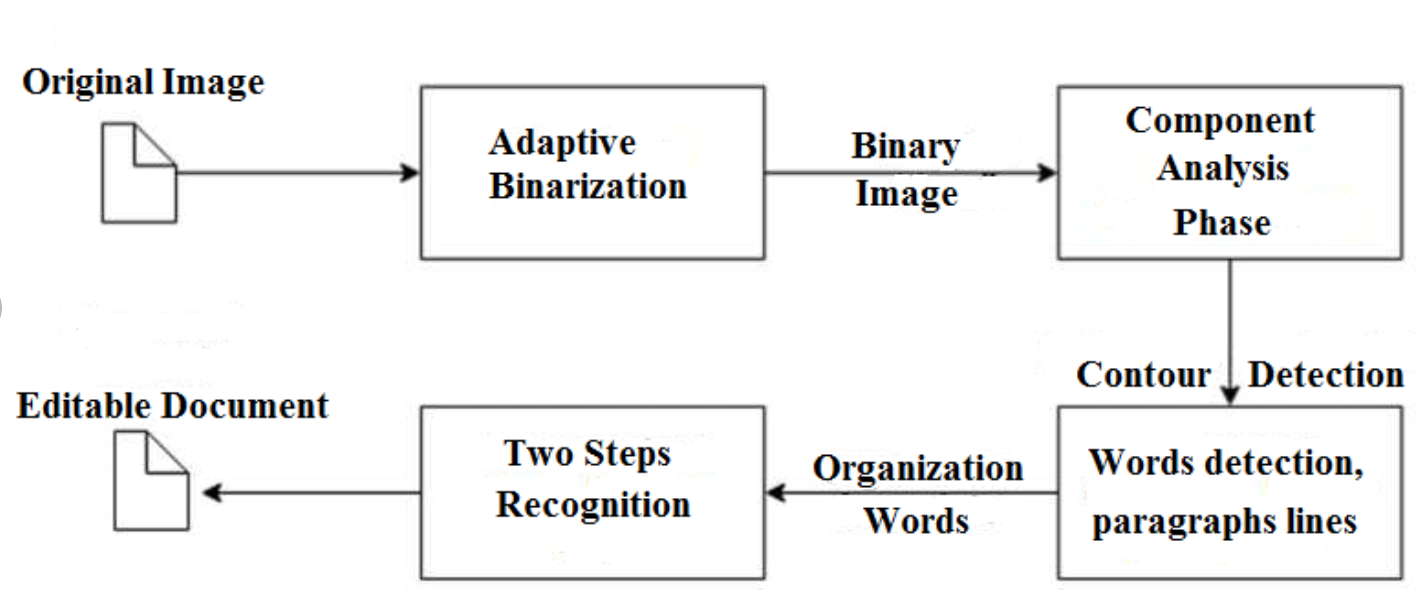

Architecture
legacy tesseract engine:
- polygonal approximation
- contour detection
- two-step approach that calls adaptive recognition
- one stage for character recognition
- second stage to match word/context

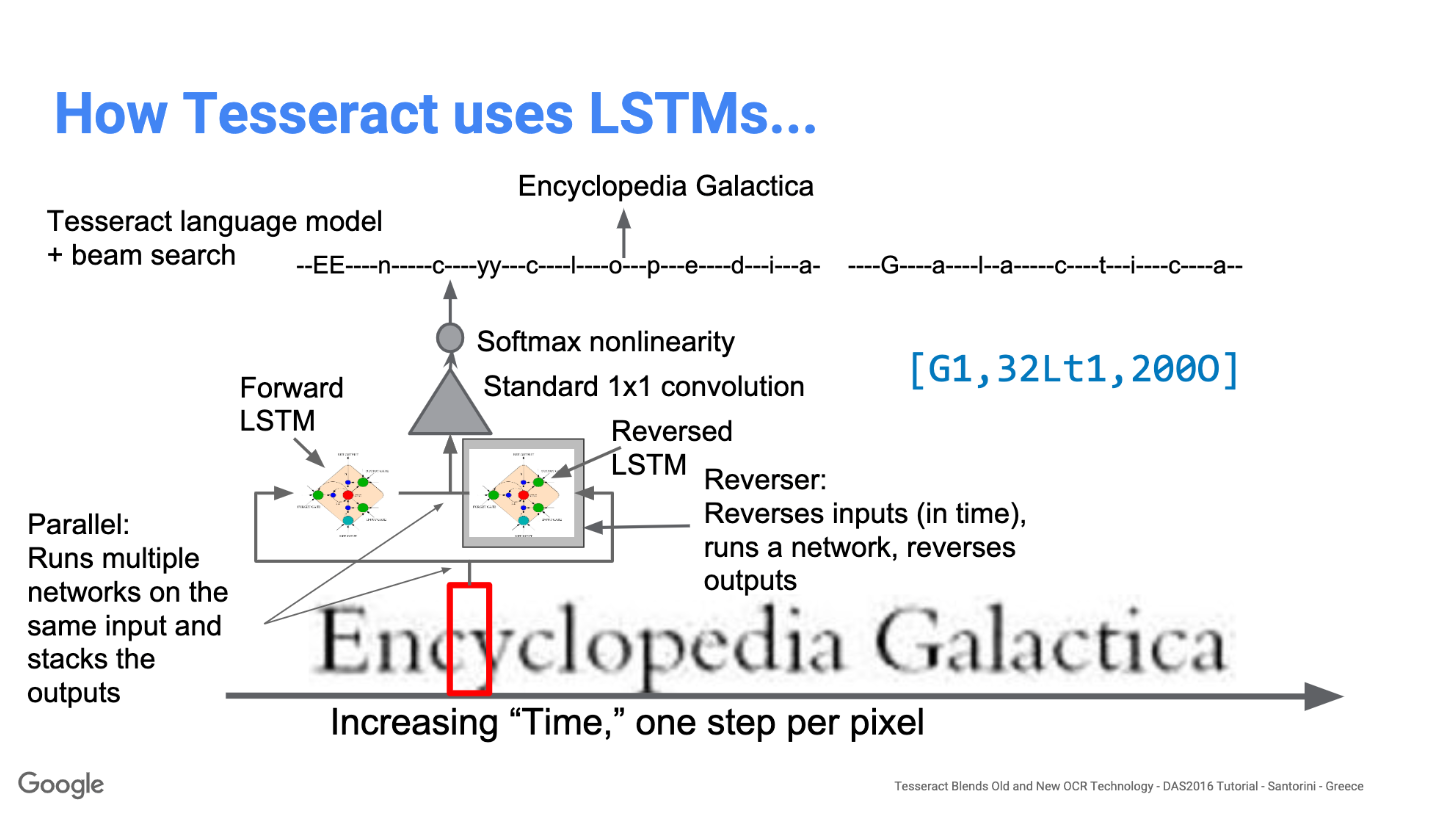

LSTMs
How Tesseract uses LSTM model presentation
- LSTM code based on OCROpus Python implementation.
- Fully integrated with Tesseract at the group-of-similar-words level.
